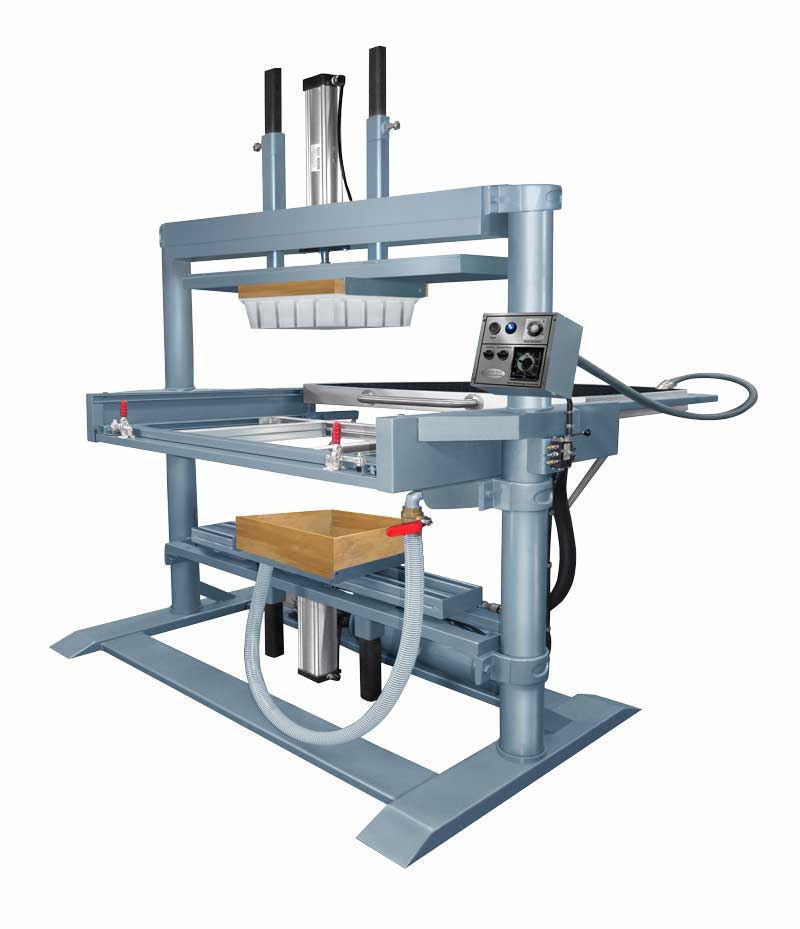

BV C-Class 24" x 48"
Regular price $9,900 - Promotional Pricing $8,900
Our Model BV C Class 24″ x 48″ Vacuum forming machine can form most thermoplastics up to 1/4″ and provides high quality thermoforming capabilities at an economical price.
This equipment offers a full range of vacuum forming capabilities designed for entry level, and production-minded consumers. Featuring our classic post and beam engineered technology, saving you 40% cost on local and world wide shipping.
Call JB For A FREE Consultation On Your Project
30+ Years Experience Engineering & Sales You Can Trust!
EXPLORE THE MACHINE
Discover the BV C-Class 24″ x 48″ Vacuum Forming Machine, a high-performance solution designed for precision and efficiency. With its sheet-fed and optional roll-fed systems, this machine offers exceptional reliability for both flexible and rigid material processing. Ideal for diverse applications, from packaging to automotive components, the BV C-Class ensures consistent, high-quality results while minimizing downtime and material waste. Perfect for businesses seeking improved production speed and reduced operational costs.
12KW Radiant Heater Panel

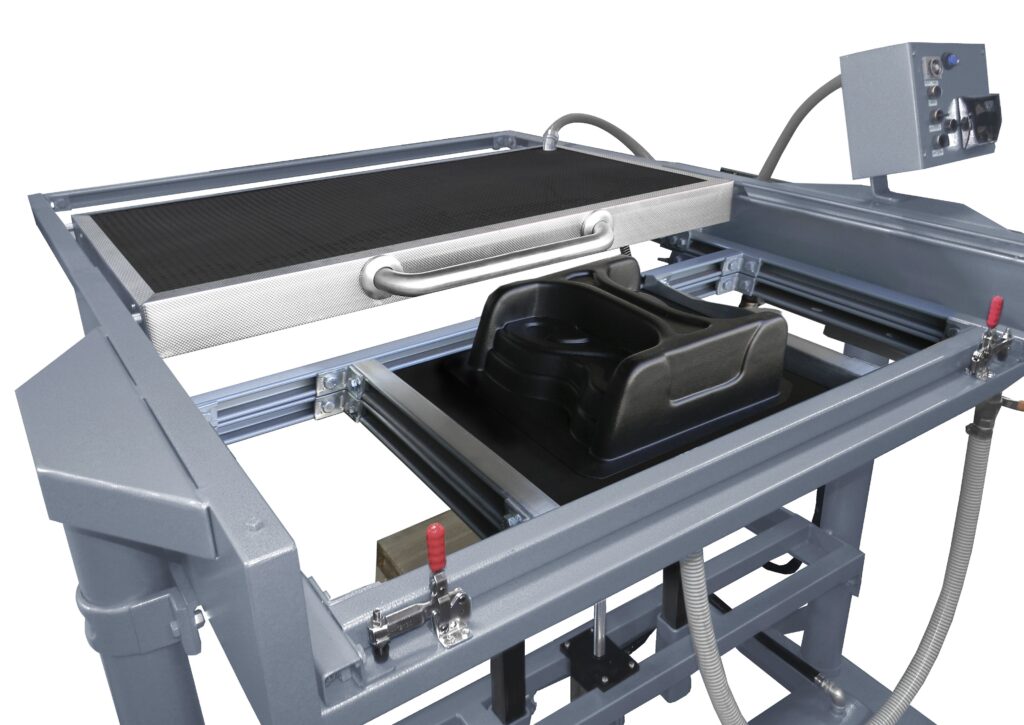

Fully adjustable plastic clamping frame
Control face
3 1/4" Pnuematically driven table
11 Gallon vacuum surge tang
About Our BV C-Class 24″x48″ Vacuum Forming Machine
Machine Specifications
Sheet Size 24×48
Depth of Draw 18 inch
Tooling Table 3-1/4″ Pneumatic Drive
Heater Panel 12KW infrared panel
Vacuum Pump 6CFM High Volume Pump
Construction Post and Beam, modular frame system
Plastic Gauges up to 1/4″
Power Requirements 208/240V 3 Phase 35 AMPS Single phase available at customer request
- Recommended for plastics ABS-HIPS-KYDEX-ACRYLIC-HDPE and most other Thermo-plastics
- Solid state programmable heat timing unit, coupled with programmable percentage control unit
- Fully adjustable material clamping
AVAILABLE UPGRADES
Give your machine usability upgrades

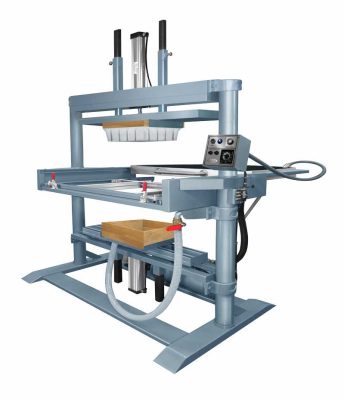

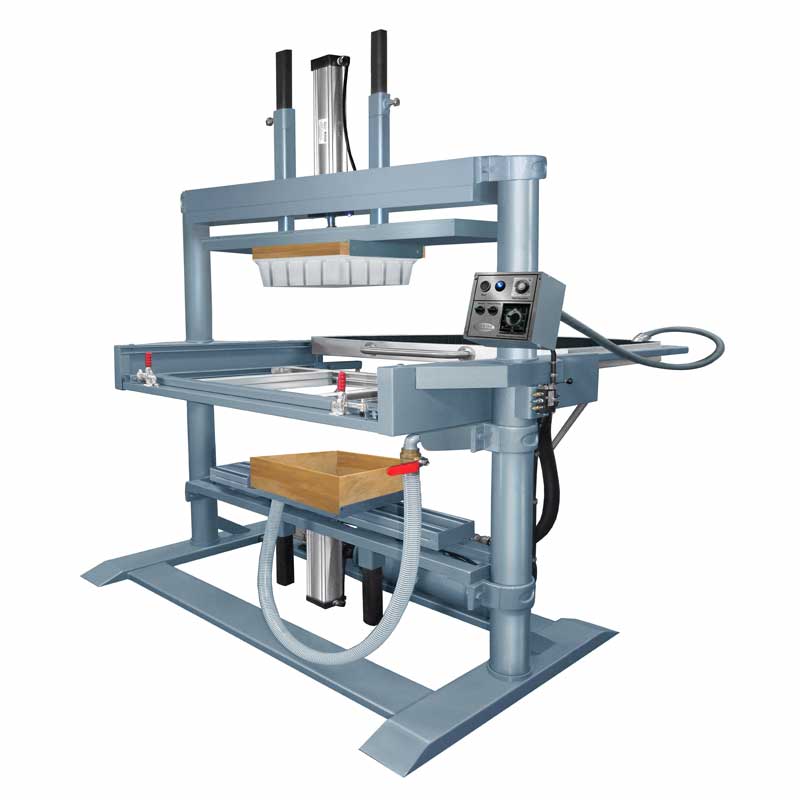

Overhead assist
Upgrade cost: $2,200.00
24″ Stroke Recommended for inverted tools, deep draw pockets. multiple tool forming, outer-pinch mechanism.

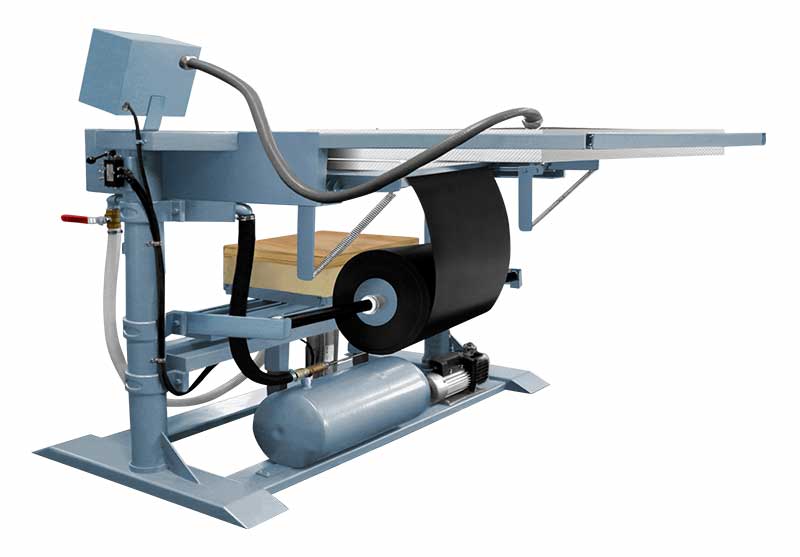

Roll Holder
Upgrade cost: $600.00
All C-Class models are available with an optional roll holder and front slitting guide recommended for light gauge plastics and height production projects, packaging, clam shells, blisters, trays and inserts.

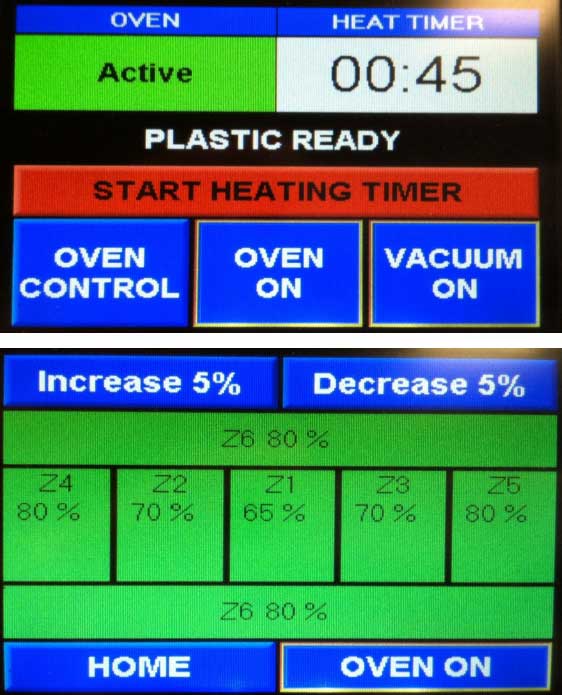

PLC Heat Control
Upgrade cost: $2,850.00
Touch screen interface 6 Zone heat control for multi zone variable heat control.
About the BV C-Class 24″ x 48″ Vacuum Forming Machine
The BV C-Class 24″ x 48″ from Belovac is an industrial vacuum forming machine built for professionals who demand precision, speed, and durability. With a 24″ x 48″ sheet size and 18 inches depth of draw it can handle a wide range of products and applications.
Right sized for:
- POP displays — counter units, shelf-edge displays, product trays
- Product packaging — clamshells, blisters, trays, inserts
- Electronics enclosures — instrument casings, control covers
- Laboratory equipment — instrument housings, protective panels
Need a bigger part? Sign faces, cement precast liners, and RV panels run on the 48″ x 48″ and 48″ x 96″.
Versatility Across Plastic Materials and Sheet Sizes
This plastic vacuum forming machine works with most common thermoplastics, including ABS, PETG, polycarbonate, and acrylic. Its generous 24″ x 48″ format allows for both high-volume thermoforming and custom part applications.
A Vacuum former built for Performance and Longevity
Belovac has a reputation as one of the top vacuum forming machine manufacturers in the U.S., offering a wide range of machines from manual thermoforming machines to fully automated production systems. The BV C-Class is a favorite among vacuum formers, thanks to its durable design, and compatibility with custom molds and toolsets.
Whether you’re scaling up from a manual vacuum former or integrating a new machine into a production vacuum forming line, the BV C-Class offers plug-and-play versatility. Industries looking for affordable vacuum forming services or custom industrial thermoforming solutions will find the BV C-Class to be a future-ready investment.
