Vacuum Forming Machine For Sale

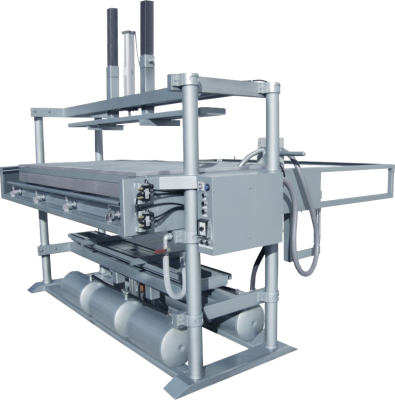

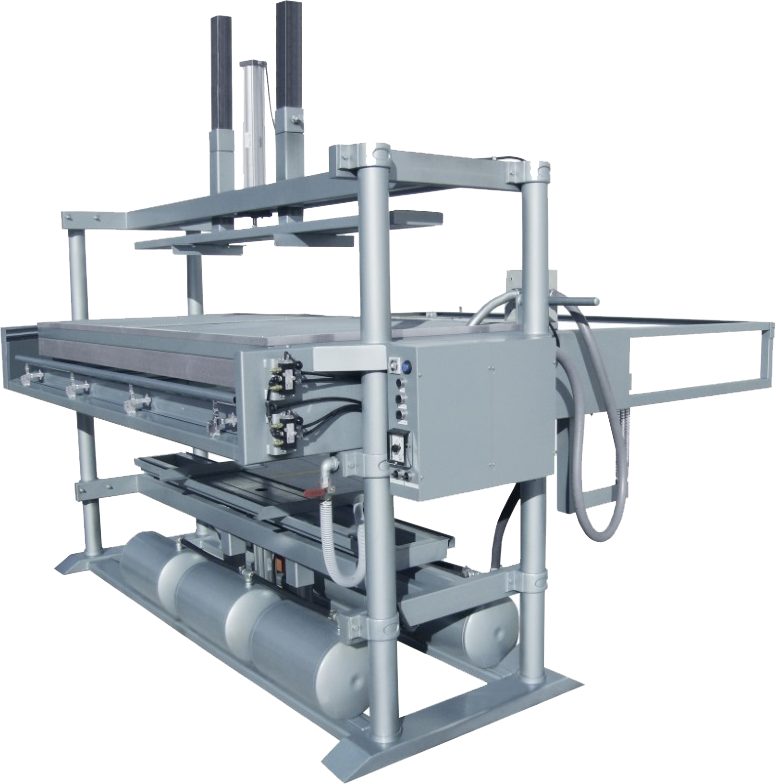

BV C-Class 48" x 96"
Regular price $22,900 - Promotional Pricing $21,900
The Model BV C-Class 48″ x 96″ is designed to thermoform a full size 48” x 96” sheet of plastic up to a 1/4” in thickness. This equipment is extensively used in the sign packaging and cement precast industry.
Belovacs proprietary modular Post and Beam design allows this equipment to be shipped partially disassembled to reduce the shipping space required by up to 35%. This allows for substantial savings on shipping costs.
This equipment comes fully equipped with a radiant variable heat output control oven, onboard high-volume high-vacuum pump and surge tanks, pneumatically driven tool delivery and fully adjustable clamping frame.
It is suitable for any work environment , schools, prototyping, or full scale production vacuum forming. Our C Class series is the culmination of over 30 years of vacuum forming experience. Our thermoformers provide top quality performance for the budget minded.
The Model BV c Class is the best selling Vacuum former in the industry with 1000+ model currently in the field.
Call JB For A FREE Consultation On Your Project
30+ Years Experience Engineering & Sales You Can Trust!

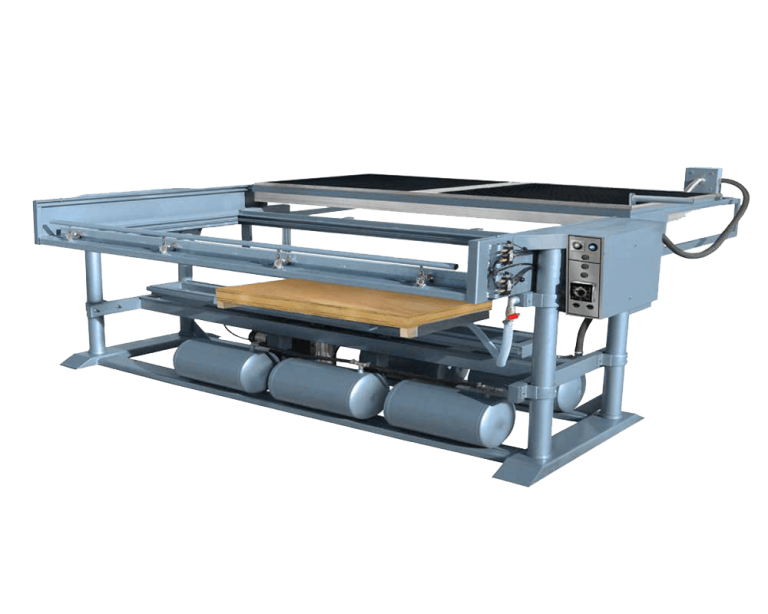

EXPLORE THE MACHINE
The BV C-Class 48″ x 96″ Vacuum Forming Machine is engineered for high-performance and precision in large-scale production. With its advanced sheet-fed and roll-fed systems, it efficiently handles both flexible and rigid materials. Whether used for packaging, automotive parts, or custom applications, the BV C-Class ensures reliable, high-quality results while minimizing downtime and material waste. This machine is an excellent choice for businesses aiming to increase production efficiency and reduce operational costs.
63KW Radiant Heater Panel
Fully Adjustable Plastic Clamping Frame
3 1/4" Pnuematically Driven Table
Control Panel
80 Gallons of Vacuum Surge Tanks
CONTROL FACE
Belovac’s intuitive controls make using and understanding the C Class quick and easy. Featuring a 0-100% heat percentage controller for accurate and consistent heat output and heater bank size down switches for smaller jobs. This equipment also comes standard with a heat timer for production minded projects.
specifications
Sheet Size 48×96
Depth of Draw 18 inch
Tooling Table 15″ stroke 3-1/4″ Bore
Heater Panel 63KW infrared panel
Vacuum Pump High Volume High Vacuum
Construction Post and Beam, modular frame system
Plastic Gauges up to 1/4″
Power Requirements 208/240V 3 Phase 165 AMPS Single phase available at customer request
- Recommended for plastics ABS-HIPS-KYDEX-ACRYLIC-HDPE and most other Thermo-plastics
- Solid state programmable heat timing unit, coupled with programmable percentage control unit
- Fully adjustable material clamping
AVAILABLE UPGRADES
Give your machine usability upgrades

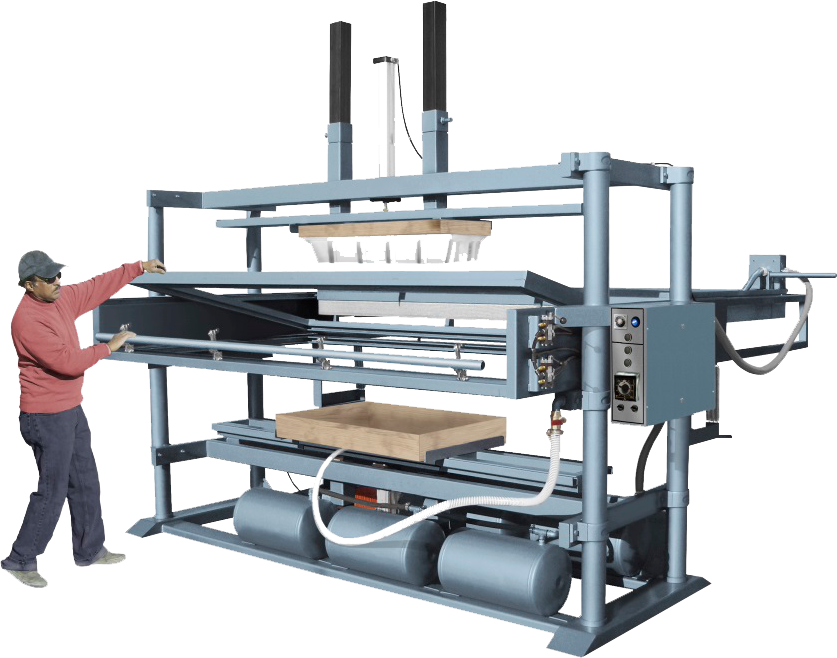

Overhead assist
Upgrade cost: $3,900.00
24″ Stroke Recommended for inverted tools, deep draw pockets. multiple tool forming, outer-pinch mechanism.
Roll Holder
Upgrade cost: $1,200.00
All C-Class models are available with an optional roll holder and front slitting guide recommended for light gauge plastics and high production projects, packaging, clam shells, blisters, trays and inserts.
PLC Heat Control
Upgrade cost: $3,500.00
Touch screen interface 6 Zone heat control for multi zone variable heat control.
About the BV C-Class 48″ x 96″ Vacuum Forming Machine
The BV C-Class 48″ x 96″ from Belovac is a top-tier industrial vacuum forming machine, engineered for large-scale operations that require precision, speed, and durability. Featuring a massive 48″ x 96″ forming area, this machine is perfect for high-volume production, delivering consistent results across demanding industries. Whether you’re in automotive, aerospace, medical, or packaging, the BV C-Class is versatile enough to form a wide range of plastic materials using both vacuum and pressure techniques. It’s ideal for manufacturing components such as large dashboards, vehicle parts, industrial enclosures, and complex packaging.
Unmatched Precision and Power
The BV C-Class 48″ x 96″ comes equipped with a high-performance infrared heating system—available in 1000W and 1500W configurations—that ensures fast and uniform plastic heating. Combined with Belovac’s advanced vacuum pump filtration system, it delivers exceptional vacuum efficiency, providing cleaner forming cycles and top-notch results, even with intricate or detailed molds.
Flexible with Materials and Sheet Sizes
This advanced vacuum forming machine works seamlessly with a variety of thermoplastics, including ABS, PETG, polycarbonate, and acrylic. Its expansive 48″ x 96″ surface area is ideal for both large-batch thermoforming and customized large-part projects, such as recreational vehicle components, POP displays, or medical equipment enclosures.
Durable Design for Long-Term Performance
As one of the leading vacuum forming machine manufacturers in the U.S., Belovac is known for producing robust machines built to last. The BV C-Class 48″ x 96″ is engineered with reliability in mind, featuring a durable construction, compatibility with custom molds, and the ability to integrate with specialized equipment like industrial drying ovens.
Your Partner for Scalable Thermoforming Solutions
Whether you’re transitioning from a manual vacuum former or adding new machinery to an existing automated production line, the BV C-Class 48″ x 96″ provides unmatched scalability. It supports vacuum forming plastic sheets, integrates with custom drying ovens, and is suitable for both pressure and vacuum forming processes.
Companies in need of cost-effective vacuum forming services or tailored industrial thermoforming solutions will find the BV C-Class 48″ x 96″ a future-proof choice for their growing needs.
