Vacuum Forming Machine Manufacturer

Vacuum Forming Machine For Sale

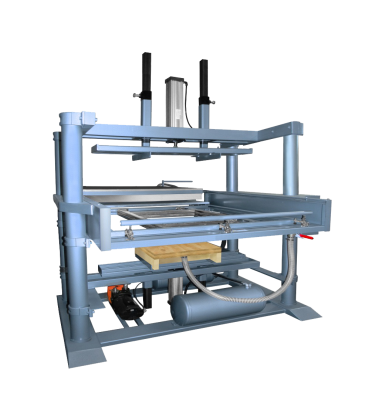

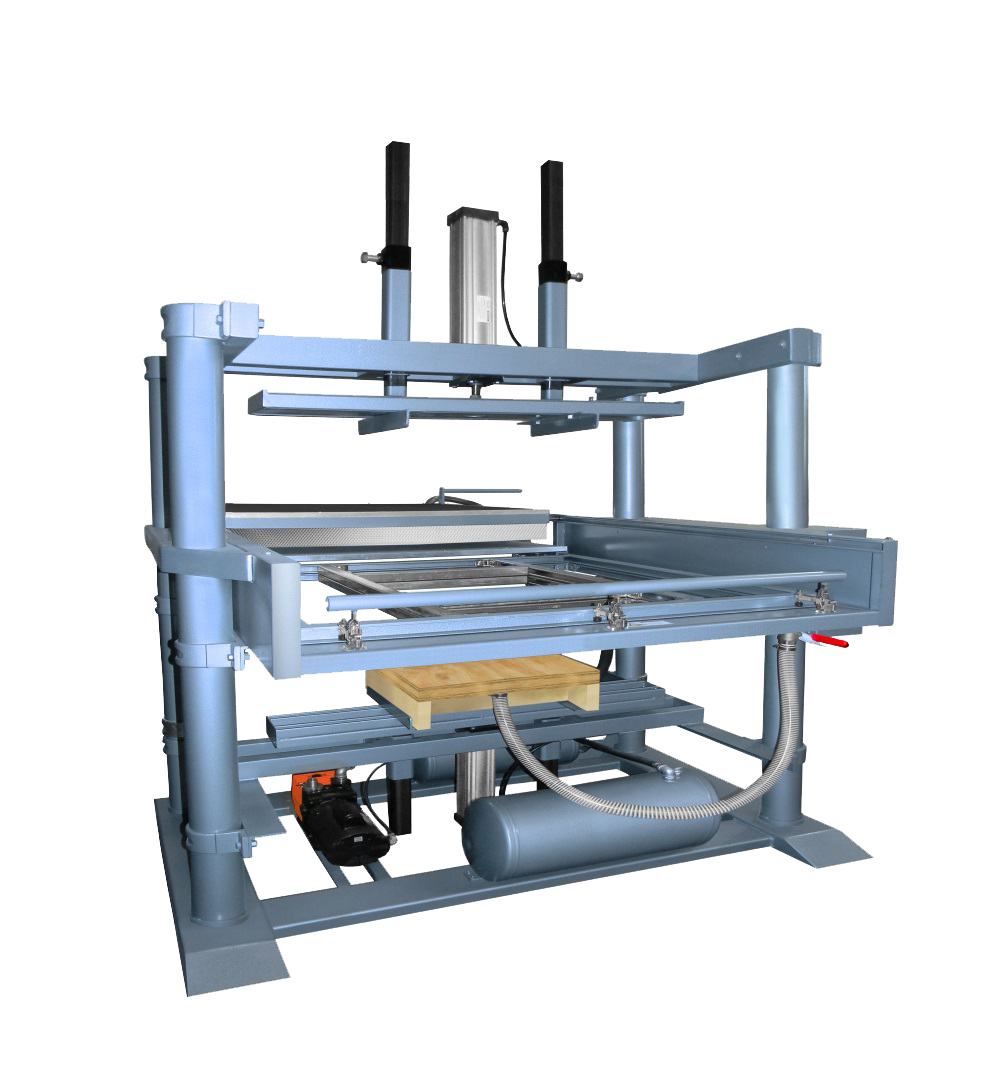

BV C-Class 48" x 48"

Regular price $14,900 - Promotional Pricing $13,900

The Model BV C-Class 48″ x 48″ is engineered to meet and exceed the high demands of production thermoforming. Combining common sense operation with built to last construction, this equipment is suitable for any vacuum forming application. Including POP displays, Signs, Cement Precast molds, packaging and much more.

Belovacs proprietary modular Post and Beam design allows this equipment to be shipped partially disassembled to reduce the shipping space required by up to 35%. This allows for substantial savings on shipping costs.

This equipment comes fully equipped with a radiant variable heat output control oven, onboard high-volume high-vacuum
pump and surge tanks, pneumatically driven tool delivery and fully adjustable clamping frame.

It is suitable for any work environment , schools, prototyping, or full scale production vacuum forming. Our C Class series is the culmination of over 30 years of vacuum forming experience. Our thermoformers provide top quality performance for the budget minded.

Call JB For A FREE Consultation On Your Project

30+ Years Experience Engineering & Sales You Can Trust!

EXPLORE THE MACHINE

The BV C-Class 48″ x 48″ Vacuum Forming Machine is a high-performance solution designed for precision and efficiency. Featuring advanced sheet-fed and roll-fed systems, it’s perfect for processing both flexible and rigid materials. Ideal for applications ranging from packaging to automotive components, this machine ensures consistent, high-quality results while minimizing downtime and material waste. The BV C-Class helps businesses enhance production speed, optimize operations, and reduce costs for a more efficient manufacturing process.

bc c-class 48x48 vacuum forming machine

CONTROL FACE

Belovac’s intuitive controls make using and understanding the C Class quick and easy. Featuring a 0-100% heat percentage controller for accurate and consistent heat output. This equipment also comes standard with a heat timer for production minded projects.

specifications

Sheet Size 48×48

Depth of Draw 18 inch

Tooling Table 15″ stroke 3-1/4″ Bore

Heater Panel 30KW infrared panel

Vacuum Pump High Volume High Vacuum 12CFM

Construction Post and Beam, modular frame system

Plastic Gauges up to 1/4″

Power Requirements 208/240V 3 Phase 80 AMPS Single phase available at customer request

Recommended for plastics ABS-HIPS-KYDEX-ACRYLIC-HDPE and most other Thermo-plastics
Solid state programmable heat timing unit, coupled with programmable percentage control unit
Fully adjustable material clamping

AVAILABLE UPGRADES

Give your machine usability upgrades

Overhead assist

Upgrade cost: $2,900.00

24″ Stroke Recommended for inverted tools, deep draw pockets. multiple tool forming, outer-pinch mechanism.

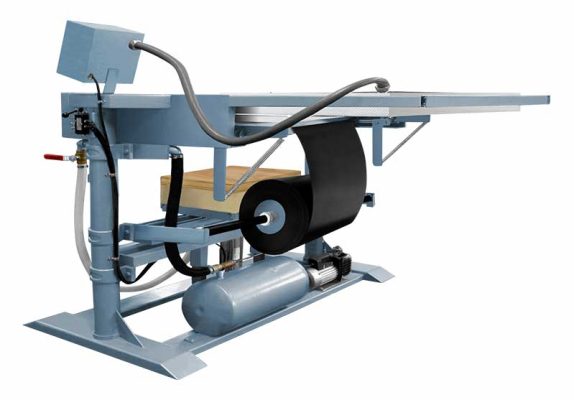

Roll Holder

Upgrade cost: $850.00

All C-Class models are available with an optional roll holder and front slitting guide recommended for light gauge plastics and high production projects, packaging, clam shells, blisters, trays and inserts.

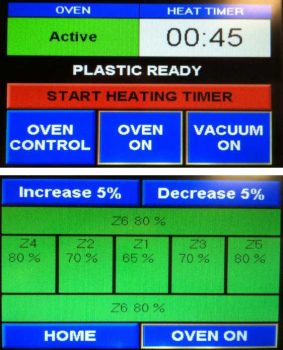

PLC Heat Control

Upgrade cost: $3,200.00

Touch screen interface 6 Zone heat control for multi zone variable heat control.

About the BV C-Class 48″ x 48″ Vacuum Forming Machine

The BV C-Class 48″ x 48″ is a robust vacuum forming solution designed for industrial applications requiring precision and large-format capabilities. With a square 48″ x 48″ forming area, this machine is ideal for companies producing sizable plastic parts with consistency and efficiency. Industries such as automotive, construction, and recreational vehicles can all benefit from the flexible capabilities of this machine, from forming deep-draw components to structural panels.

Industrial Heating and Vacuum Technology

The BV C-Class 48″ x 48″ features an efficient infrared heating system engineered to ensure rapid and uniform heating across large plastic sheets. Combined with a high-performance vacuum pump and filtration system, this machine delivers strong forming pressure and clean operations—perfect for complex mold details and thicker-gauge materials.

Compatible With a Wide Range of Thermoplastics

Designed for flexibility, this vacuum forming machine handles most sheet thermoplastics, including ABS, polycarbonate, PVC, HDPE, and HIPS. The 48″ x 48″ format supports both large production runs and short-run custom parts for sectors like packaging, medical, and POP displays.

Durable Construction and Configurable Options

Built in the USA, the BV C-Class 48″ x 48″ is engineered for longevity and ease of use. It is compatible with Belovac’s range of drying ovens and tooling accessories, making it easy to adapt the machine to different forming needs. Whether using custom molds or standard dies, this platform offers reliable operation shift after shift.

Reliable for Growth and Scalable Production

Whether you’re expanding your thermoforming line or upgrading from a smaller system, the BV C-Class 48″ x 48″ supports scalable production. It integrates well with automated sheet feeders, trimmers, and other downstream equipment. Companies looking for a dependable forming machine for large-format plastics will find this model ideal for both prototyping and mass production. If you’re in the market for an industrial-grade vacuum forming machine that balances size, performance, and versatility, the BV C-Class 48″ x 48″ is an excellent choice.

Have A Vacuum Forming Question?

With over 30 years experience in building custom industrial thermoforming machines for a wide range of industries, there is little we haven’t seen. Have A question? Ask us!
