BV A Class - Full Auto -Sheet Fed

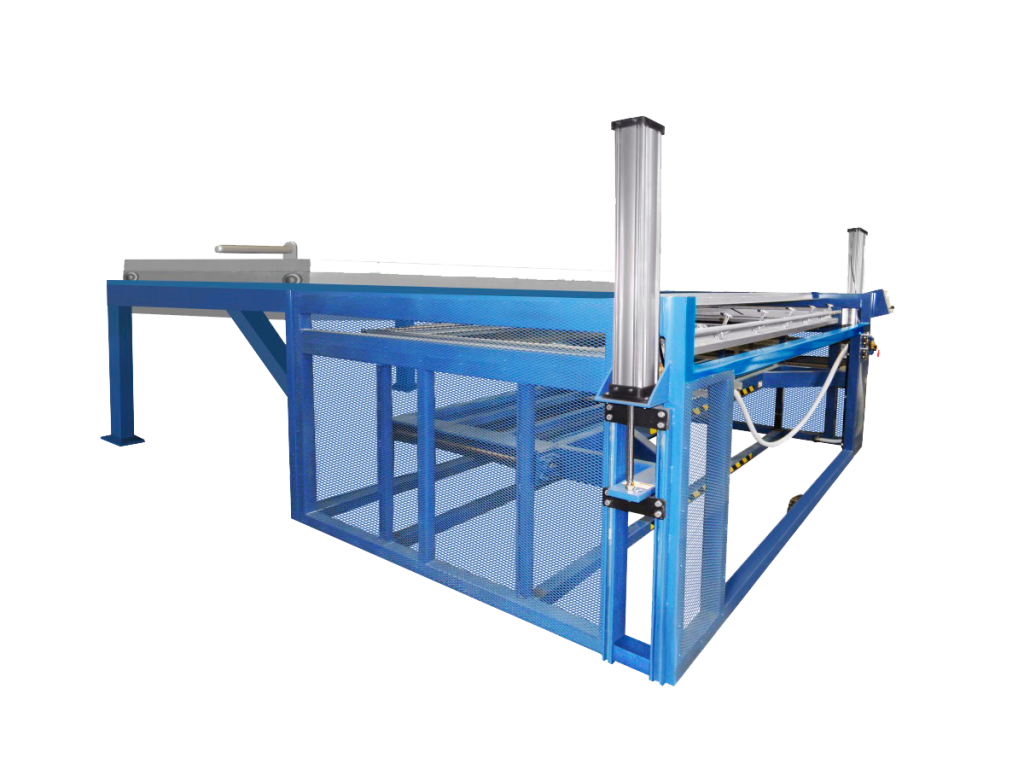

Belovacs A Class series offers top of the line fully automated vacuum forming equipment at a fraction of our competitors price. This equipment can be fitted with a wide range of options and customizability. Standard Sheet Sizes offered are 33” x 53” and 53” x 53” and 53” x 103”. This frame system can support size upgrades up to 60” x 144” plastic sheet size.

This equipment features fully timed onboard automated sequencing for split second forming operations. It saves time and money by eliminating potential operator error and misfires. Additional Upgrades include-32” Deep Draw tooling table– Overhead Assist—Ceramic Heating Elements-Pneumatic Clamping. This equipment can be fitted to suit any application.

Call JB For A FREE Consultation On Your Project

30+ Years Experience Engineering & Sales You Can Trust!

STANDARD A-CLASS VACUUM FORMING EQUIPMENT FEATURES

FULLY ADJUSTABLE UNISTRUT CLAMPING FRAME

LIGHT CURTAIN SAFETY LOCKOUT

SIEMENS PLC TOUCH SCREEN HEAT CONTROL

Our Touch Screen PLC Control allows for precision timed automated sequencing and
Touch screen Heat Control 7 Zones Upper/Lower Oven banks.

specifications

Recommended for plastics ABS-HIPS-KYDEX-ACRYLIC-HDPE –POLYCARBONATE and most other Thermo-plastics
Solid state programmable heat timing unit, coupled with programmable percentage control unit
Fully adjustable material clamping

AVAILABLE UPGRADES

Give your machine usability upgrades

Overhead Assist

24″ Stroke Recommended for inverted tools, deep draw pockets. multiple tool forming, outer-pinch mechanism.

DEEP DRAW TOOLING TABLE

Our Standard Deep Draw tooling table upgrade features a 32” stroke lower Table and 34” Clearance Excellent For deep draw applications such as tubs, sinks, Etc. Extended Depths are available.

ADJUSTABLE PNEUMATIC CLAMPING

Our highly durable, easy to use and install adjustable pneumatic clamps save time and money. Pneumatic clamps allow for faster plastic load and unload times as well as 300LBs per foot of clamping power. Ideal for tough to heat materials such as lucite and polycarbonate.

Ceramic Heat

Ceramic Heat can provide a high heat output and heat consistency. Ceramic Heaters are usually recommend for high heat demand plastic polymers used in the medical and aviation industry.

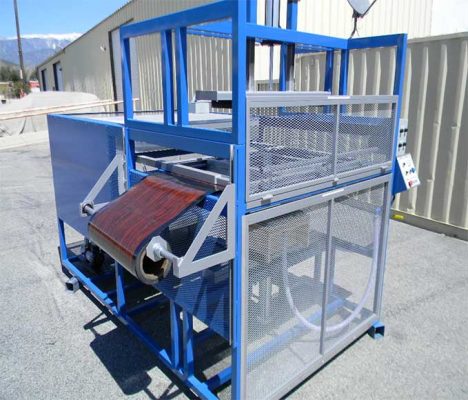

Roll Holder

All C-Class models are available with an optional roll holder and front slitting guide recommended for light gauge plastics and high production projects, packaging, clam shells, blisters, trays and inserts.

About the BV A Class – Full Auto – Sheet Fed Vacuum Forming Machine

The BV A Class Full Auto – Sheet Fed Vacuum Forming Machine from Belovac offers a state-of-the-art solution for high-precision, fully automated vacuum forming. Designed to deliver exceptional performance at a fraction of the cost of competitors, this system is perfect for manufacturers seeking efficiency, consistency, and customization. Whether you’re in automotive, aerospace, or medical, the BV A Class provides reliable and cost-effective production of high-quality formed parts.

Efficient and Accurate Automation

The BV A Class is fully equipped with onboard automated sequencing that ensures precise, split-second forming operations. This advanced system minimizes the risk of operator error and prevents misfires, ultimately saving both time and money while improving production efficiency. Its fast, reliable operation makes it ideal for large-scale production of components in industries where high-volume output is required.

Customizable for Any Application

Offering standard sheet sizes of 33” x 53”, 53” x 53”, and 53” x 103”, the BV A Class vacuum forming machine can be customized to meet the specific needs of various industries. For larger production runs, the frame system supports size upgrades up to 60” x 144”. Whether you need to form small parts or large, complex components, the BV A Class can handle it all with ease.

Built for Durability and Versatility

With additional upgrades like a 32” Deep Draw tooling table, overhead assist, ceramic heating elements, and pneumatic clamping, the BV A Class provides an unmatched level of versatility and durability. These upgrades allow for more precise molding and easier handling of larger sheets, making it suitable for a wide variety of applications, from medical equipment to packaging.

Future-Proof Your Production Line

The BV A Class is an excellent investment for companies looking to scale up their production without compromising on quality. Fully automated and customizable, it offers unparalleled flexibility to suit any application and can be easily integrated into your existing production line. This machine delivers a reliable, cost-effective vacuum forming solution that will grow with your business.

Have A Vacuum Forming Question?

With over 30 years experience in building custom industrial thermoforming machines for a wide range of industries, there is little we haven’t seen. Have A question? Ask us!

Belovac LLC

Belovac LLC offers a wide range of vacuum forming and thermoforming machines, from entry-level to fully automated, large-format systems. With over 30 years of industry experience, Belovac provides customizable solutions for various applications, including large format machines and industrial drying ovens.
