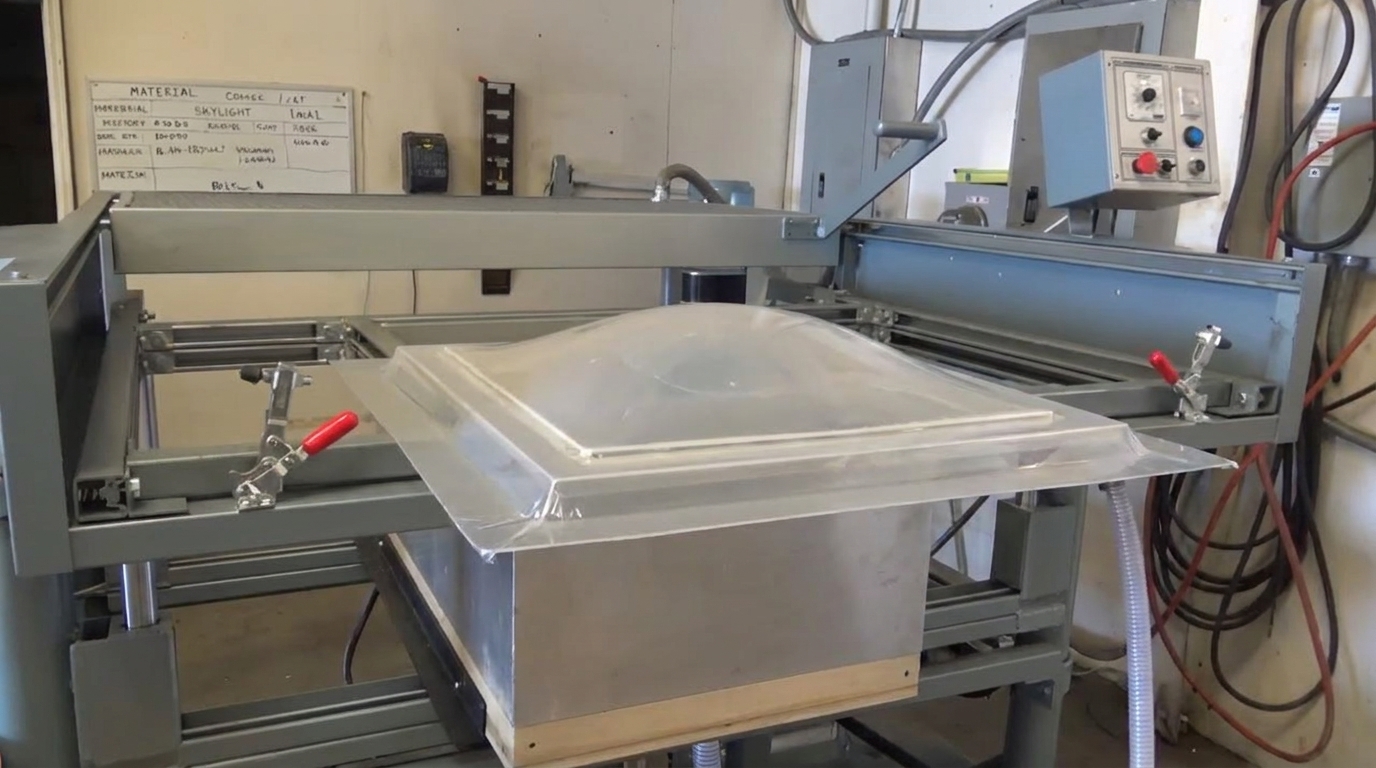

A skylight dome doesn’t crack or fog because the acrylic was bad. It fails because the machine that formed it couldn’t hold heat and vacuum evenly across a deep, curved draw. Domes look flawless coming off the mold, then show stress lines or optical distortion once installed and under sun load.
The Forming Problem Nobody Budgets For
Skylight domes are a deep-draw application by nature. Even a mid-size residential dome pulls material several inches down from the clamp frame, and commercial units go deeper still. That draw depth is exactly what standard flat-sheet equipment isn’t built for.
Heater zones sized for shallow trays leave the center of the sheet hot while the edges cool, so material stretches unevenly as it’s pulled into the mold. Vacuum systems without sustained draw run out of pull before the sheet fully seats, leaving webbing or thin spots right where dome curvature is sharpest. The part looks clear on the shop floor and then shows haze or stress whitening months later, once UV exposure and thermal cycling find the weak points.
Why the Fix Is Machine Capacity, Not Technique
Operators get blamed for defects that are really an equipment limitation. No amount of adjusting heat soak time compensates for a machine that doesn’t have the zone control or vacuum capacity a deep dome requires. Skylights, tubular daylighting domes, and large architectural glazing all share the same demand: even heat and strong, sustained vacuum across a curve that’s far more aggressive than a flat panel. Belovac’s large format vacuum forming machines are built around exactly this problem, with zone control sized for deep, oversized draws rather than flat panels.
What Actually Separates a Capable Machine From an Underpowered One
Spec sheets make most vacuum forming machines look interchangeable. The gap shows up once a shop is running dome production at volume, not during a demo part.
| What to check | Why it matters for skylight domes |
|---|---|
| Independent heater zones | Corners and center draw at different rates on a curved part; fewer zones means one area is always compromised |
| Vacuum draw and hold time | Deep domes need sustained pull, not just peak vacuum, to fully seat material before it cools past its forming window |
| Plug-assist compatibility | Deep-draw domes rely on plug assist to pre-stretch material evenly before vacuum takes over, protecting wall thickness |
| Mold changeover speed | Shops running multiple dome sizes need fast tooling swaps to keep throughput up without long downtime between runs |
| Material handling design | Optical clarity is the whole product; scratches or contamination during loading show up as visible defects in the finished dome |
Buyers who choose on price alone tend to find these gaps after the first production run, when domes start coming out with visible haze or inconsistent wall thickness and the only fix is running well below the machine’s rated capacity.
Automation Matters as Much as Raw Capacity
A shop running one custom dome a week has different needs than one running repeat production across multiple sizes. Belovac’s PLC control options scale from manual single-zone setups to fully automated multi-zone systems built for consistent, repeat dome runs.
Matching Machine Size to Your Full Production Mix
Few shops form skylight domes exclusively. Most run domes alongside other large parts, which means the right machine isn’t sized around one dome, it’s sized around the full range of parts moving through the shop. Our custom large-format machines are configured around the specific dimensions and draw depths of the parts a shop actually runs, skylight domes included, so there’s no separate equipment needed for the deepest or largest jobs in the mix.
Belovac has built thermoforming equipment in Banning, California since 1984, and financing through Univest Capital is available for shops weighing a large format purchase against the ongoing cost of scrap and rework on undersized equipment.
Choosing the Right Machine Comes Down to the Dome You’re Actually Forming
Every shop evaluating equipment for skylight production is answering the same question: does this machine have the zone control, vacuum capacity, and draw depth the domes require, or will every run be a fight against the equipment’s limits. That’s an engineering match between dome geometry and machine capability, not a spec sheet comparison.
Request a quote and we’ll help you confirm the right machine for your dome sizes and production volume before you commit to equipment.
